Omada SDN—The Smarter Cloud Solution for Business Networking

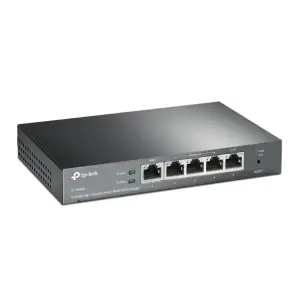

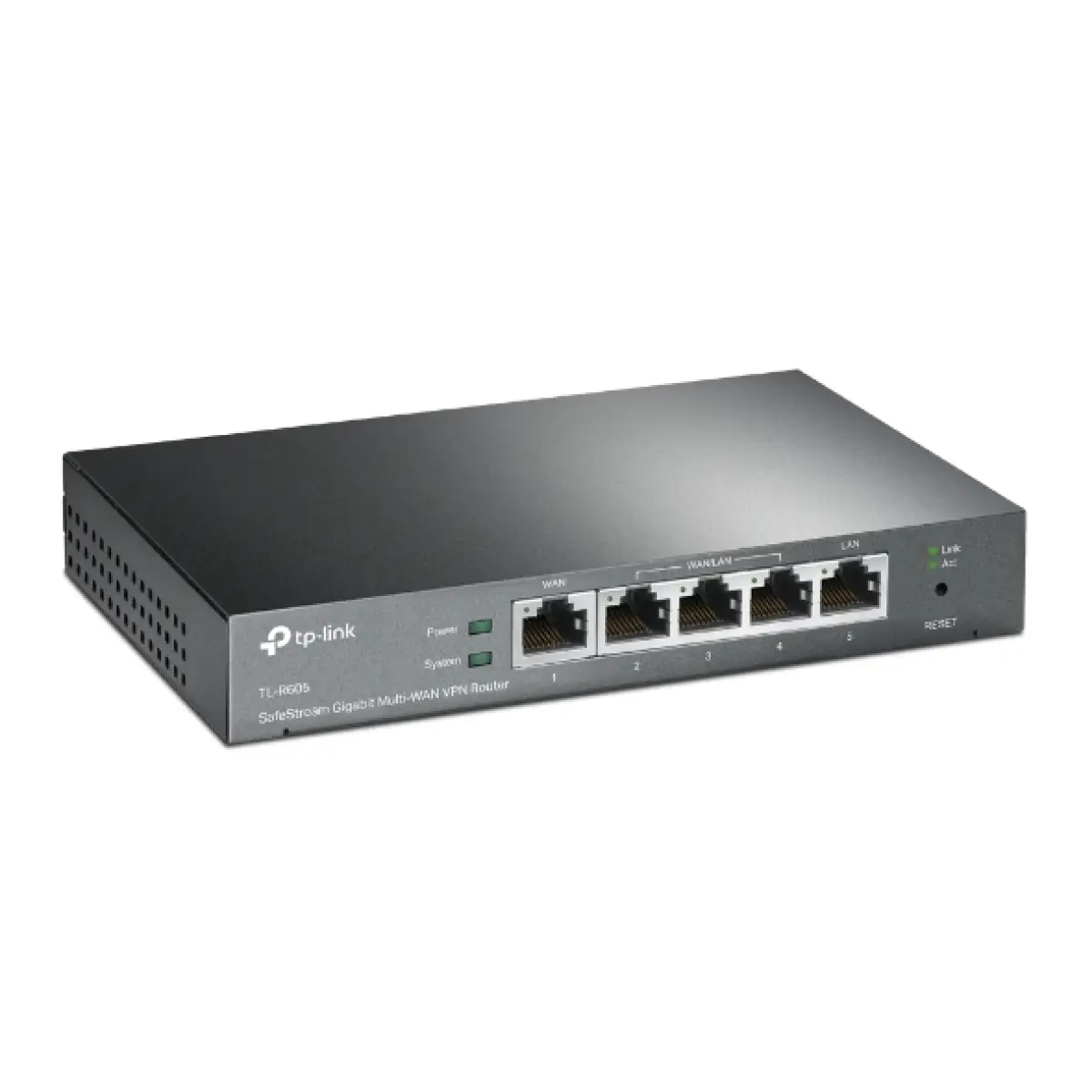

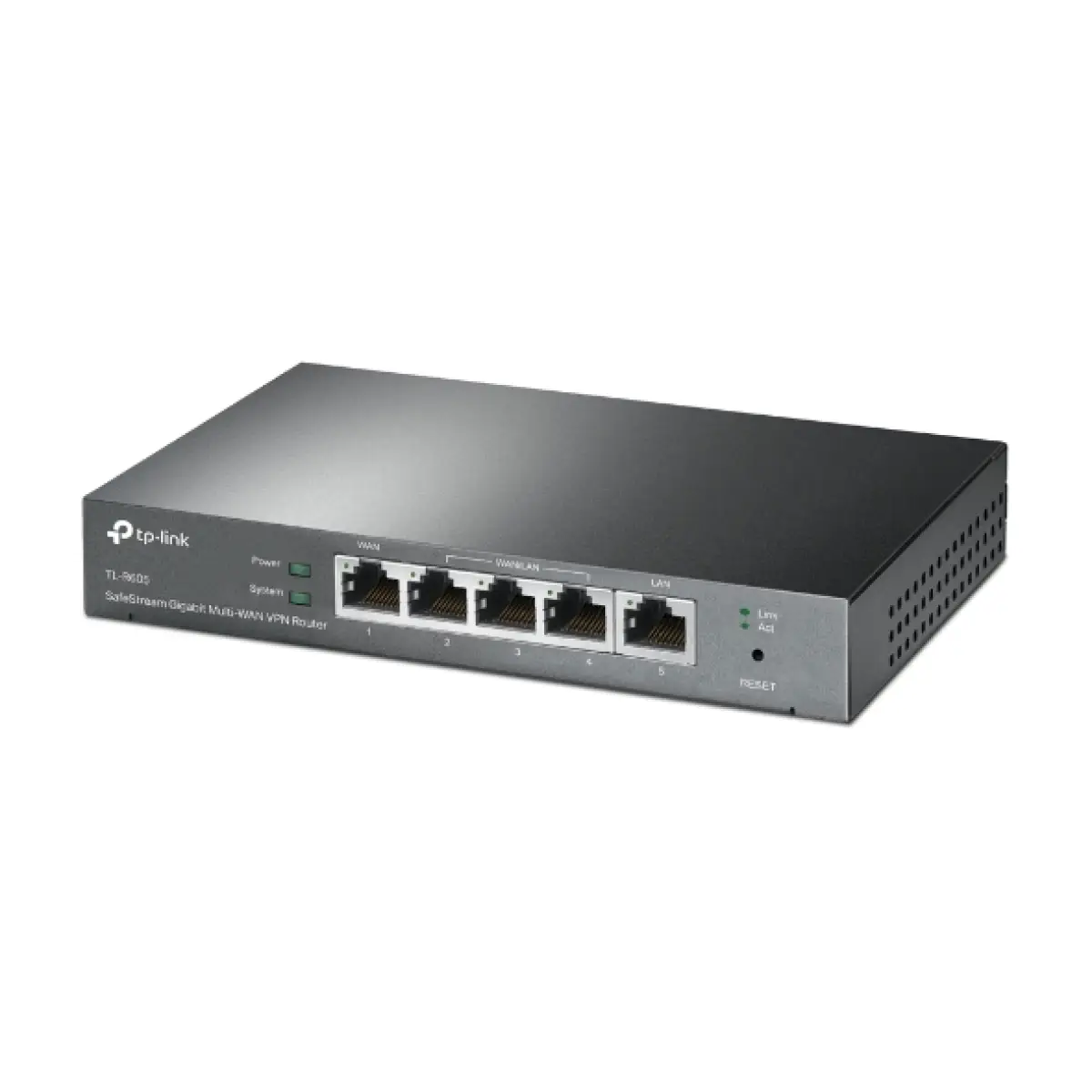

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-R605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

Three freely interchangeable ports that can be set to either WAN or LAN allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

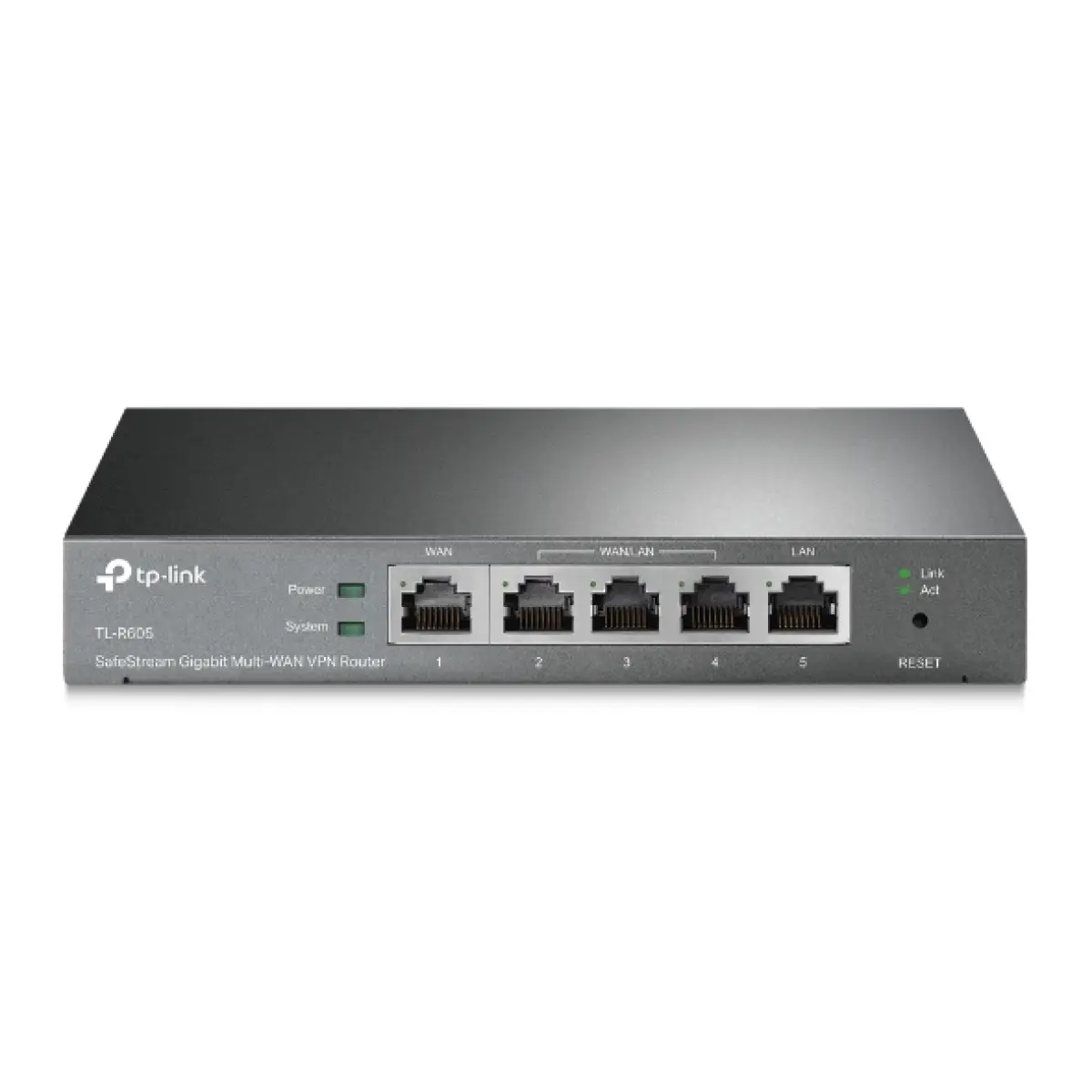

1 Gigabit WAN Port 3 Gigabit WAN/LAN Ports 1 Gigabit LAN Port Reset

Highly Secure VPN

TL-R605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

HeadquartersOmada Controller IPSec VPN Subsidiary

Abundant Security Features

Powerful Firewall

Advanced firewall policies
protect your network and data.

Convenient VLAN Support

Create virtual network segments for
enhanced security and simplified
network management.

DoS Defense

Automatically detects and blocks Denial of Service
(DoS) attacks such as TCP/UDP/ICMP Flooding, Ping
of Death, and other related threats.

IP/MAC/URL Filtering

Forcefully prevent viruses and attacks
from intruders.

IP-MAC Binding

Reserves static IP assignment for
clients to defend against ARP
attacks and spoofing.

One-Click ALG Activation

One-Click ALG Activation for
applications such as FTP, H323, SIP,
IPsec and PPTP.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.
